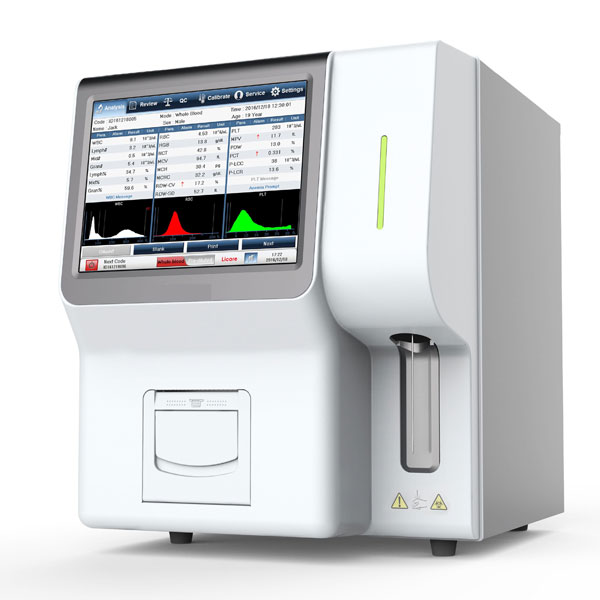

hematology analyzer

Description

Key Features

• User Friendly Interface
  10.4 inch true color TFT LCD & touch screen, more visible
  Minimize the number of interface layers, pop-up soft keyboard, easy to operate
• Internationalization support
  Possible choice of parameter units. Several languages available, can switch language on line
• Pre-defined for 13 animals plus an addition 3 user-defined animals, satisfy the requirements of most veterinary clinics
• Provide text of alarm information
  Text of alarm information is clearer than alarm character provided by traditional 3-part analyzer, such as R1, Rm and Pm
• Automatic blank counting
  Automatically start a blank counting and auto-assessment of the results during start-up process
• Automatic re-counting
  Automatically re-count after unclogging treatment while a counting hole is clogged, avoid re-collecting blood
• Automatic adjusting
  Automatically adjusting voltage of HGB blank. Automaticallyadjusting alarm thresholds of clogging
  and bubble of countingapertures
• Built-in patented structure thermal printer. Easy to load paper, and fast print of large size report
  Paper 80mm wide. Report printing takes only 5 seconds
• State-of-the-art technology
  Sweeping flow technology, Pulse discrimination technology, Intelligent floating threshold technology
• Wide application
  Pet hospitals, Zoos, Livestock System, Laboratory Animal Center, etc

Technical Specifications

• Measuring Principles
  Impedance method for cells counting
  Cyanide free colorimetric method for HGB measurement
• Measuring Channels
  Double channel for counting
• Throughput
  From beginning of a test to completion of the printout: :≤60 Seconds
• Counting Modes
  Whole Blood, Pre-diluted Blood
• Sample Volume
  Whole Blood: ≤ 14µL
  Pre-diluted Blood: :≤20µL
• Species of Animals
  13 pre-determined animal settings ( cat, dog, horse, mouse, rat, rabbit, pig, cow, buffalo, monkey, camel, sheep and goat ) plus 3 programmable on request
• Parameters & Histograms
  Three-part differentiation of WBC covering dog, cat, mouse, rat, rabbit, monkey and horse, 21 parameters + 3 histograms
  WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LCC, WBC Histogram, RBC Histogram, PLT Histogram
• Alarm System
  Multiple alarms of running status including blank counting abnormal, reagents empty, waste full, counting hole clogged, counting area bubble, recorder abnormal, external printer abnormal and circuit abnormal, etc
• Measures of Unclogging Treatment
  Back flushing, soaking and burning. Automatic unclogging treatment before and after the sample analysis
• Printout
  English print report, optional report formats
• Storage
  Can store more than 10,000 sample results, including parameters, histograms and animal information. Support multiple conditions combination query
• Communication
  Open communication protocol. Support connection to LIS
• Data Import & Export
  Import or export data via USB port
• Quality Control System
  Include 9 QC files, automatically draw quality control chart, provide the average, SD, CV
• Calibration System
  Support manual and automatic calibration
• Software Upgrading
  Upgrading software via USB port
• Display & Touch Screen
  10.4 inch true color TFT LCD and touch screen
• Printer
  Built-in patented structure thermal printer, paper 80mm wide, easy to load paper. Report printing takes only 5 seconds
• Data Ports
  One network port, one RS-232 port, four USB ports
• Optional External Devices with USB Port
  Standard 101 keyboard, mouse, barcode scanner and multiple printers
• Power
  220V, 50Hz Input power: ≤150VA
• Operating Environment
  Environment Temperature: 10°C ~ 30°C
  Relative Humidity: ≤ 70%
  Atmospheric Pressure: 70.0kPa ~ 106.0kPa
• Dimensions
  368mm x 448mm x 4 75mm
• Weight
  ≤23Kg
• Reagents
  Provide original reagents
